  • Slip Ring  6p

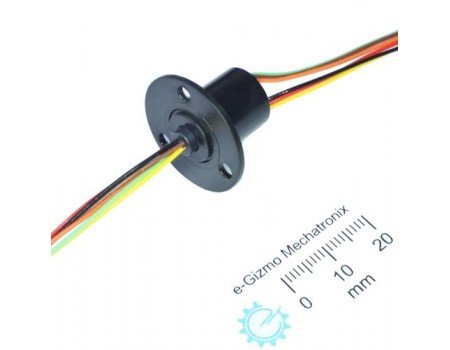

6 Channel Slip Ring 360 degrees Rotation
Electrical Connection for your coupled Rotating Joints

Speed: 300rpm max
Channel number:6 Channel
Rated voltage:220VAC/DC
Rated current:2A,/channel
Operating temperature:-40C ~ +80C
Contact material: gold
Wire Size:AWG30 Silver-plated Teflon UL
Wire length:standard 200mm
Insulation resistance:1000MO/500VDC
Dynamic resistance fluctuation value:minimum 10mR
Shell material:Engineering plastics
Working life:=5 million rpm(depending on the working environment and speed)
Outside Dia: 12.5mm
Flange Dia: 24mm
Lenght: 15mm

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Slip Ring 6p

  • Product Ref: 48900
  • Product Code: 240800006
  • Availability: In Stock
  • ₱375.00


Tags: rotating, connector
