NCV4275A5G 5V 450mA LDO Voltage Regulator With Reset Output DPAK-5

Marking: 4275A5G

The NCV4275C is an integrated low dropout regulator designed for use in harsh automotive environments. It includes wide operating temperature and input voltage ranges.

It also provides a number of features, including overcurrent protection, overtemperature protection and a programmable microprocessor reset.

Voltage Input: 45V max.
Voltage Output: 5.0V typ.
Current Output: 450mA (650mA typ)
Dropout Voltage: 500mV max @ 300mA
Load Regulation: 30mV
Line Regulation: 15mV

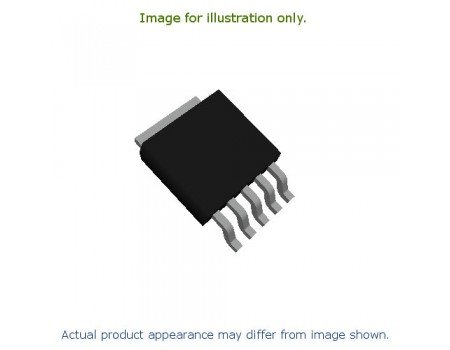

Package/Image: DPAK-5
