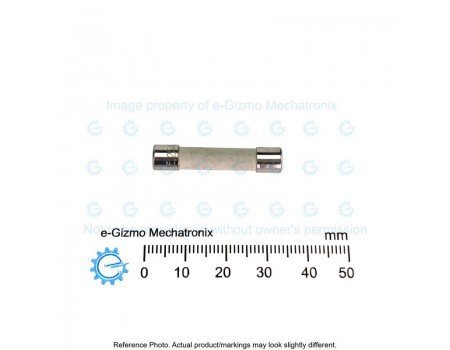

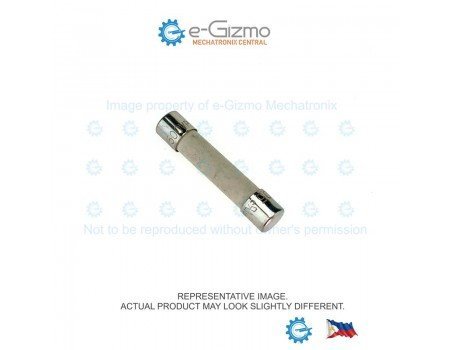

Littelfuse 25A 500V 32mm Cartridge Fuse Ceramic Tube Fast Acting 0505025.MXP

Tags: fuse

Description
Reviews

Genuine Littelfuse 0505025.MXP Series 505 Ceramic Cartridge Fuse Top quality fuse.

Rating:
Current: 25A Fast Acting (Fast Blow)
Voltage: 500V
Nominal Cold Resistance: 0.0048R
Series: 505
Size: d6.35x31.75 mm
Safety Certification: UL,CUL

Typical opening time (at % current rating):

150% - 30 minutes max.
200% - 30 minutes max.
300% - 10sec max.

Package/Image: cfuse32

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
