DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate

DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
New
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
DIY Warmwhite + RGB LED Module on 39mm Aluminum Substrate
₱22.00
  • Stock: In Stock
  • Product Code: 181100008
  • Weight: 0.00g
  • Product ID: 50670
Tags: led , power led

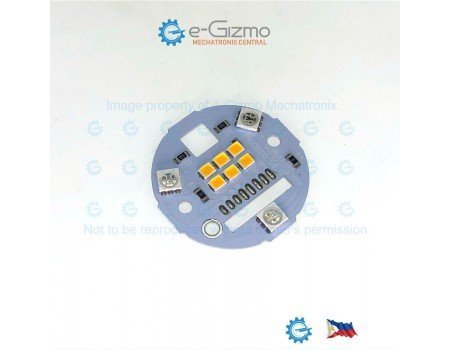

This product is a DIY LED module with all the mood colors you will ever want. The LEDs are bonded on an aluminum PWB for heatsinking. You can operate the LEDs at slightly higher wattage if you mount it on an external heatsink.

For best results, a constant current driver should be used in powering the main LEDs.

Typical Forward Voltage:

Warm White: 51.6V @50mA

RGB Red: 11V @100mA
RGB Blue: 10.5V @100mA
RGB Green: 11.8V @100mA

Recommended maximum drive current:

Warm White: 60mA W+ & W-

RGB LEDs: 100mA

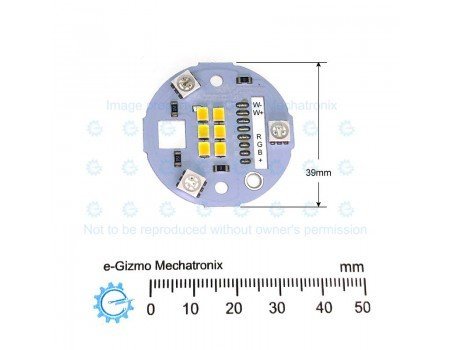

Pin out:
W+ Warm white (+)
W- Warm white (-)

+ RGB Common (+)
R Red (-)
G Green (-)
B Blue (-)
