USB to TTL Serial CH340 Module

USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
USB to TTL Serial CH340 Module
₱56.00
  • Stock: In Stock
  • Product Code: 580012536
  • Weight: 0.00g
  • Product ID: 1201

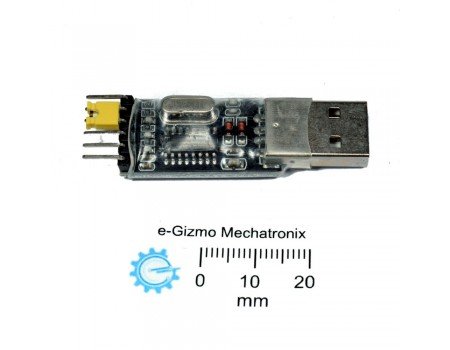

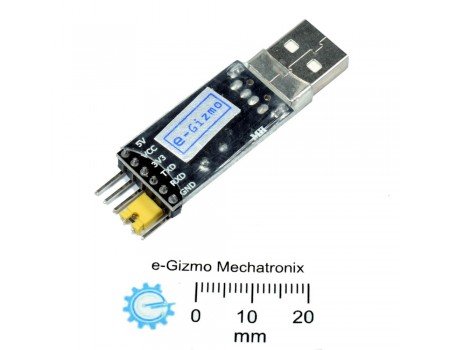

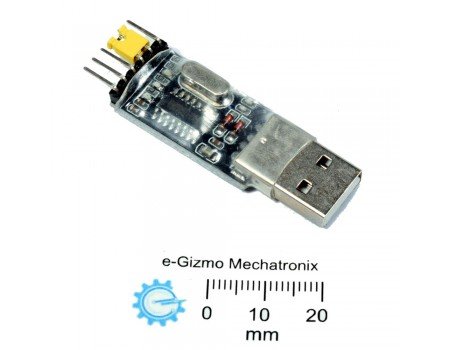

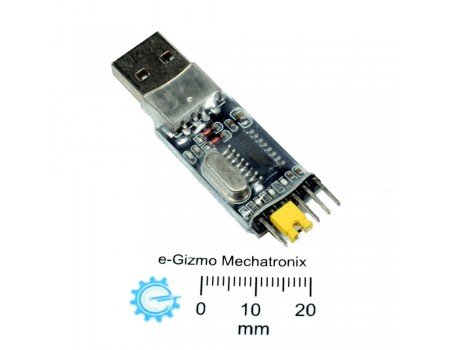

This is a low cost USB to TTL module based on CH340 chip. CH340 is low cost alternative to FTDI USB serial Chips. The Module supports both 3.3V and 5V levels by a jumper selection. The module supports 50bps to 2Mbps baudrates.




Specifications :
Power InputUSB Port
Data Interface
Serial UART & TTL
USB Type
USB 2.0 Protocol
Baudrates
50,75,100,110,134.5,150,300,600,900,1200,1800,2400,3600,4800,9600,14400,19200,28800, 33600,38400, 56000,57600,76800,115200,128000,153600,230400,460800,921600,1500000,2000000
Supported OS
Windows, MAC, LINUX, Android




Applications :
Programming of Microcontrollers that can be programmed using serial boot loaders at 3.3V or 5.0V logic levels
Burn write STC MCU,NXP MCU,renesas MCU,NEC MCU
Data exchange between microcontroller and Desktop or Laptop Computers
Connection with GPS Devices
Connection with various external Phones, or modems, GSM Modules
All other applications requiring USB/Serial/TTL interface.
Router,HDD,ADSL,broad band modem firmware upgrade
Cellphone,XBOX360,GPS serial communication,vehicle inspection and test, dvd flash and so on
Simple UART communication,commonly used UART debugging tools in supper terminal
Two data transmission indicator can monitor data transfer status in real time
3.3V and 5V power supply interface,easy for the DDWRT of different voltage system that need power.




Downloads :
Datasheet
Download
Drivers
Download
