5W+5W Stereo Audio Amplifier ( RMS ) Disassembled

5W+5W Stereo Audio Amplifier ( RMS ) Disassembled
5W+5W Stereo Audio Amplifier ( RMS ) Disassembled
-37 %
5W+5W Stereo Audio Amplifier ( RMS ) Disassembled
5W+5W Stereo Audio Amplifier ( RMS ) Disassembled
5W+5W Stereo Audio Amplifier ( RMS ) Disassembled
₱125.00
₱198.00
  • Stock: In Stock
  • Product Code: 77009114
  • Weight: 0.00g
  • Product ID: 1261

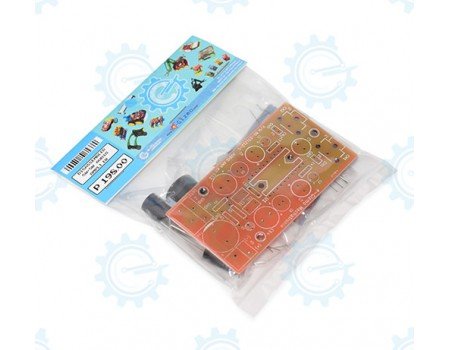

This kit packs enough power to make a great DIY amplifier/booster for your personal audio devices. When used with bookshelf loudspeakers, it can fill a fairly large room with loud and clear music. Experimenters will find this useful as a general purpose test amplifier on their workbench.




Specifications :
Power Input9 ~ 16VDC
Output Type
Single-ended
Power Output5W + 5W @ 4-ohms load
THD + Noise
0.2% @ 1kHz Typical
Output Load4 - 8 ohms




Downloads :
Schematic Diagram
Download
PCB Design
Download
Parts Layout
Download
Freedom from Hum, Noise, and Distortion ( Audio Application Notes )
Download
