SCT-013-000 100A Non-invasive Split Core Current Transformer

SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
-17 %
SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
SCT-013-000 100A Non-invasive Split Core Current Transformer
₱350.00
₱420.00
  • Stock: In Stock
  • Product Code: 580012883
  • Weight: 0.00g
  • Product ID: 1275

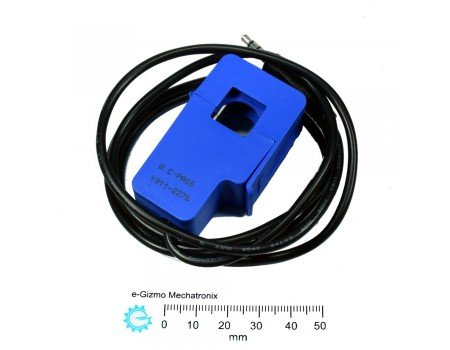

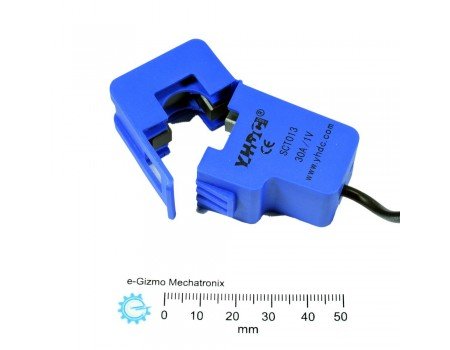

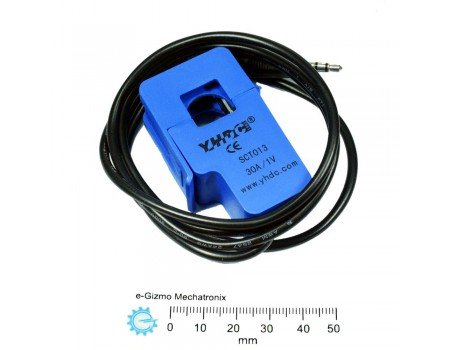

SCT-013-000 is a AC only Non-invasive Split Core Current Transformer. It measures AC current by simply clamping it over the wire where AC currents need to be tested. It outputs a proportionally small current that you can safely feed to a signal conditioning circuit, and ultimately to a microcontroller or another application circuit.


Specifications :
Core Material
Ferrite
Opening Size
13mm x 13mm
Mechanical Strength
the number of switching is not less than 1000 times
Safety index
Dieelectric strength




Features :
Crowfall compatibility interface
Current Sensing: up to 100A AC


Linearity: within +/-3%

Current Ratio: 100A:50mA
Resistance Grade B
Building sample resistance is 62ohms
Work Temperature: -25~+70 deg C




Downloads :
Hardware Manual
Download
Hardware Datasheet
Download
gizDuino/Arduino Library
Download
gizDuino/Arduino Sample Code
Download
