₱450.00
  • Stock: In Stock
  • Product Code: 211200008
  • Weight: 0.00g
  • Product ID: 1452

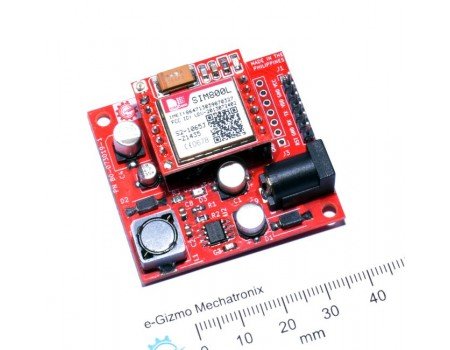

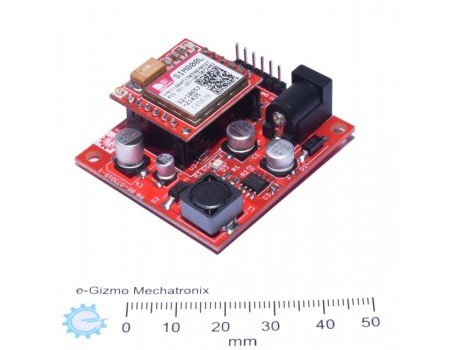

SIM800L Evaluation Board with DC/DC Converter Power Supply Circuit
- Replaceable SIM800L Module
- On board logic level transistor circuit makes it compatible with 5V and 3.3V MCU boards
- Compatible with gizDuino/Arduino and SIM800L Libraries
- Same pinout as SIM800L EVB
GSM Power Input: 9V to 12VDC (Use power adapter rated at 1A or higher)

Everyone who had experience working with the mainstream SIM800L EVB module knows too well how difficult it can be to make the module work. There are two main reasons for this difficulty. 1. You have been sent an untested and defective board ( unbelievably common) 2. You are using a power DC converter circuit not suited for the SIM800L module.

e-Gizmo SIM800L was made to save you from the above mentioned troubles, so that you can concentrate more in writting your codes, instead of troubling yourself trying to make your hardware work.

Designed and made in the Philippines by e-Gizmo

Wiring :


Downloads :
Parts Placement
Downloads
PCB Layout Top Guide
Downloads
PCB Layout Bottom Guide
Downloads
Schematic
Downloads
Arduino Sample Sketch
Downloads
GSM Shield Arduino Library
Downloads
