BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner

BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
BIO SENSING: AS608 DY50 FPM10A Fingerprint Scanner
₱510.00
  • Stock: In Stock
  • Product Code: 211100023
  • Weight: 0.00g
  • Product ID: 1491

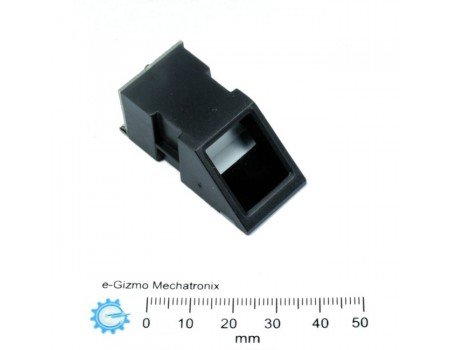

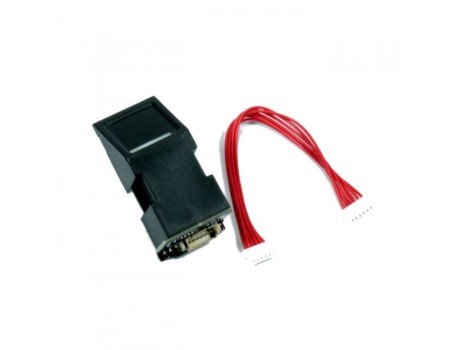

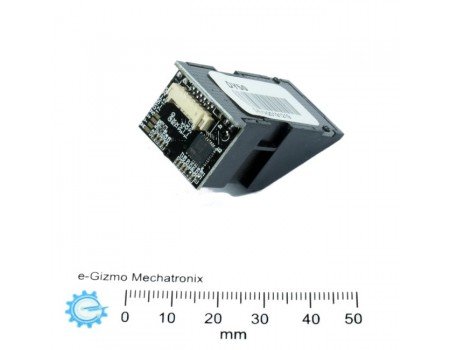

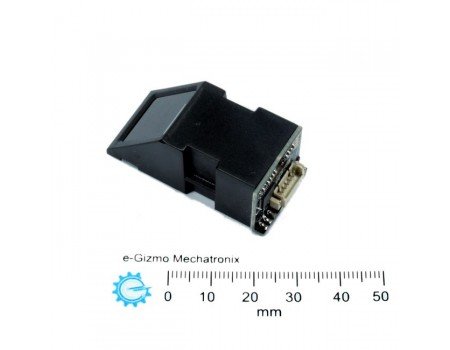

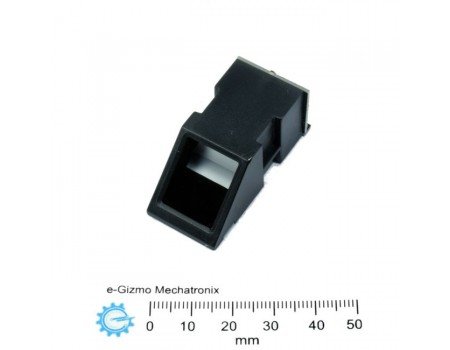

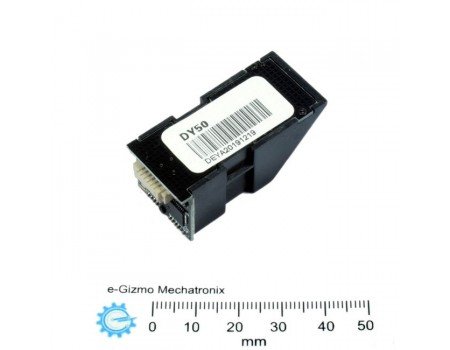

DY50 Optical Fingerprint Sensor
Adafruit Library compatible

Supply voltage: DC 3.6 ~ 6.0V
Supply Current: Current: <120mA
Peak current: <140mA
Fingerprint image time: <1.0 seconds
Window size: 14 ? 18 mm
Matching mode: Match mode (1:1)
Search mode (1: N)
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: 1,000
Safety level: five (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): <0.001% (security level 3)
False Reject Rate (FRR): <1.0% (security level 3)
Search time: <1.0 seconds (1:500, the mean)
PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
Communication baud rate (UART): (9600 ? N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)

Downloads :
AS 606 pinouts (check your module)
Download
AS 608 pinouts (check your module)
Download
AS 608 NEW pinouts (check your module)
Download
AS 608 NEW pinouts 2022 (check your module)
Download
Sample Arduino / gizDuino Sketch and library
Downloads
SFG Demo code
Downloads
