350W BLDC Brushless DC Motor Controller Driver

350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
350W BLDC Brushless DC Motor Controller Driver
₱556.00
  • Stock: In Stock
  • Product Code: 210700008
  • Weight: 0.00g
  • Product ID: 1551

This 3-phase Brushless DC Motors controller, although primarily designed for e-bikes, works just as well with many other DC brushless motors used for DIY projects.

Operating Voltage: 36/48VDC Auto-select
Operating Current: 15A Max.
Output Capacity: 350W maximum
Speed Control Input Voltage: 0-5VDC
Hall Sensor Input: 0-5V Logic

Note 1: This controller will work even without the hall sensors connected.

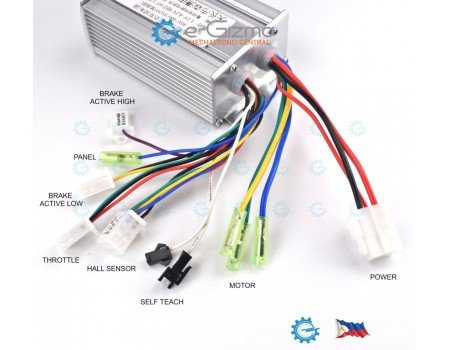

Connection Guide
Power - Power input and enable
Red (+)
Black (-)
Red (thin gauge) Enable, connect to (+) to enable
Motor - 3-phase Yellow,Green, Blue
Self-Teach - momentarily short until the motor rotates in the correct direction.
Hall Sensor
Red- +5V OUTPUT
Black - 0V
Yellow, Green, Blue - Hall sensor inputs
Throttle
Red- +5V OUTPUT
Green- 0-5V Input
Black - 0V
Brake
Black - 0V
Yellow - Active Low input
Violet - Active High input
Panel
Instrument Panel
