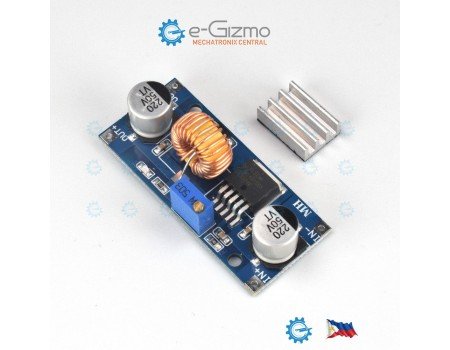

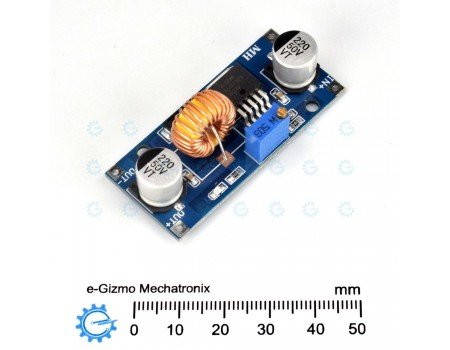

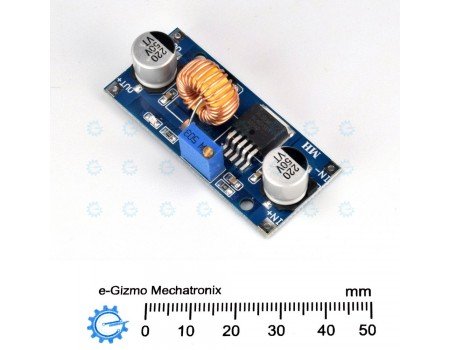

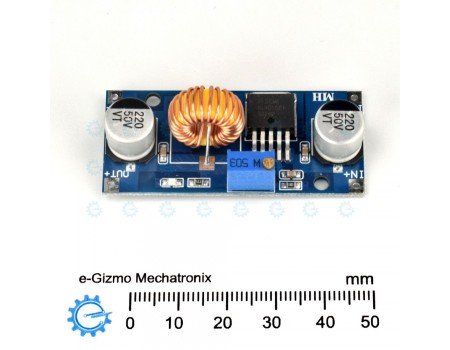

5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink

5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
New
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
5A Adjustable DC-DC Converter Power Supply Module XL4015 + Heatsink
₱99.00
  • Stock: In Stock
  • Product Code: 211000031
  • Weight: 0.00g
  • Product ID: 1564

This product is a high-efficiency DC-DC Step Down Converter. It can be used as a power supply or charger module.

Input Voltage Range: 4-38VDC
Output Voltage Adjustment Range: 1.25-36VDC
Output Current: 5A Max.
Output Power: 75W Max
Efficiency: Up to 96%
Protection: Thermal Shutdown & Output short circuit.
Mount the heatsink on top of the IC if you intend to operate the device with heavy output loads.

*Important:

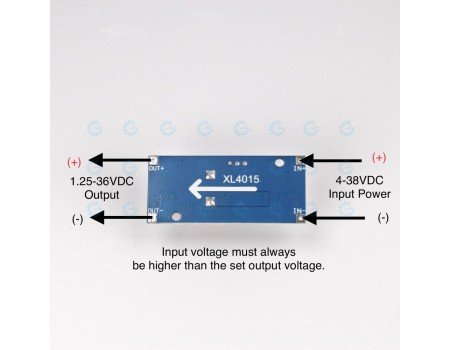

1. Input voltage must be at least 2.75V greater than the set output voltage for proper operation.
2. Actual output current capacity is limited by device power handling capability (75W) and can be estimated as Amp=75/Vout.
3. The product will be permanently damaged if the power input is connected in the wrong polarity.

Package:
1x XL4015 Module
1x Heatsink with self-adhesive
