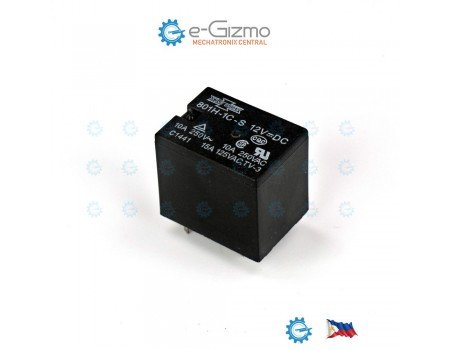

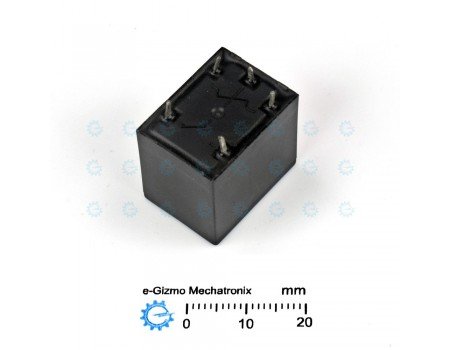

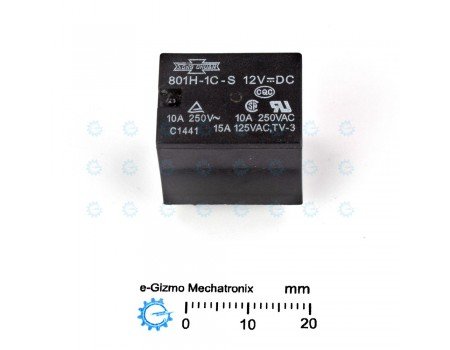

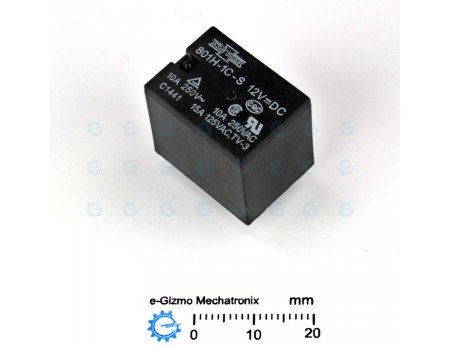

Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V

Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
New
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
₱45.00
  • Stock: In Stock
  • Product Code: 130800026
  • Weight: 0.00g
  • Product ID: 49711
Tags: relay

Genuine Song Chuan Relay.

Nominal Coil Voltage: 12V
Usable Voltage Range: 10-16VDC
Coil Resistance: 400R
Coil Current: 30mA

Contact Rating: 10A @ 250VAC TV-3
Contact Resistance: 50mR Max
Contact Configuration: SPDT
Life Expectancy: >50,000 operations

No of pins: 5
Safety Approvals: UL, CSA, CQC
