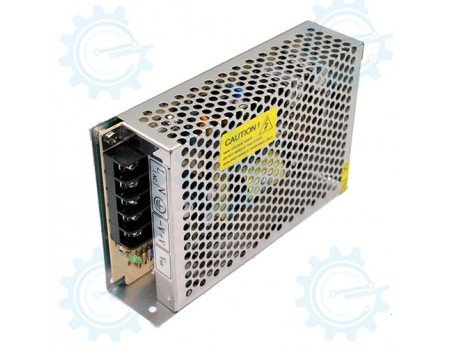

Hengfu Power Supply 12V 6A

Hengfu Power Supply 12V 6A
For Restocking
Hengfu Power Supply 12V 6A
  • Stock: For Restocking
  • Product Code: 77012819
  • Weight: 0.00g
  • Product ID: 666

l Traditional series, high reliability

l Electrolytic capacitors all 105?

l Built-in EMI filter

l Top international brand components for key parts

l Protections: overload/ short circuitl

l F605 160 x 98 x 39(mm)

AC input voltage range: 170~264VAC (210~370VDC)

Input frequency: 47~63Hz

Inrush current: cold start, 40A/230V

Input leakage current: ?0.7mA/ 230VAC

Line regulation (full load): ??0.5%

Output voltage adjust range: ?10%

Output overload protection: 105~150%, hiccup mode, auto recovery

Withstand voltage:

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

Rise time: 50ms@full load (typical)

Hold up time: 20ms@full load (typical)

Operating temperature: -20?~+50?

Safety standards: design meet GB4943, UL60950, EN60950

Cooling method: convection

Packing: 0.44kg/pcs, 30pcs/CTN
