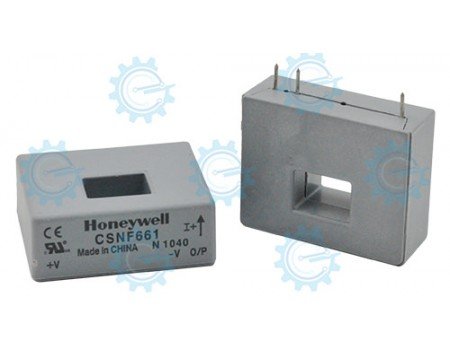

HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor

HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
HONEYWELL CSNF661 100A Hall Effect Non-Invasive AC/DC Current Sensor
₱2,057.00
  • Stock: In Stock
  • Product Code: 580020523
  • Weight: 0.00g
  • Product ID: 883
CSN Series closed-loop current sensor, measures AC, DC or
impulse current, 100 A nominal, ± 150 amp range, offset
pin, 1000 turn

Sensor Type: Closed Loop Linear
 Sensed Current Type: ac or dc
 Sensed Current Range: ± 150 A
 Package Style: Thru Hole PCB Mount
 Output Type: Current
 Maximum Continuous Current: ± 150 A
 Supply Current: ± 10 mA + output
 Supply Voltage: ± 12.0 Vdc to ± 15.0 Vdc
 Offset Current: < ± 0.2 mA
 Offset Current Drift : < ± 0.5 mA
 Coil Resistance @ 70 °C: 30 Ohm
 Response Time: < 0.5 µs
 Coil Turns: 1000
 Output Nominal: 100 mA
