NS DM74ALS574AN 74LS574Octal D F/F tri state DIP-20

The DM74ALS574AN is an octal D-type flip-flop with a tri-state output.

Manufacturer: National Semiconductor NS




Key Specifications

Type: Octal D Flip-Flop
Supply Voltage (V_CC): 4.5 V to 5.5 V
Input Voltage (V_I): 0 V to V_CC
Output Voltage (V_OH): V_CC - 0.5 V (high level)
Output Current (I_O): ±24 mA (maximum)
Propagation Delay (t_pd): 10 ns (typical at V_CC = 5 V)
Setup Time (t_su): 5 ns (typical)
Hold Time (t_h): 3 ns (typical)
Power Dissipation (P_D): 1 mW (typical)
Temperature Range: 0°C to 70°C
Package Type: DIP (14-pin)

Features:
Asynchronous reset
Tri-state outputs
Low power consumption
High-speed operation
Functionally Equivalent to 74LS574

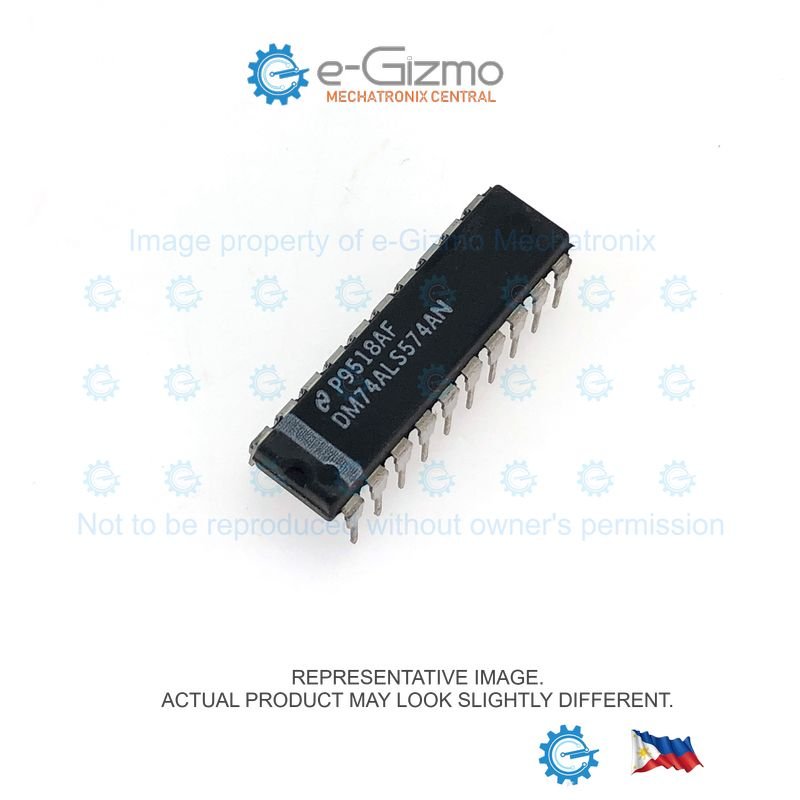

Package/Image: DIP-20
