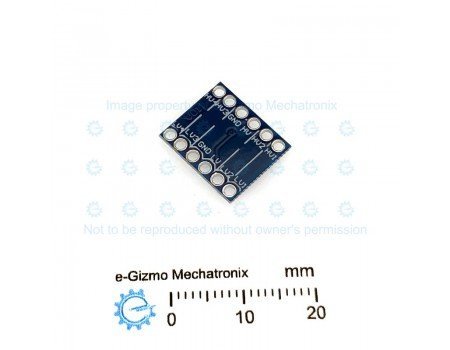

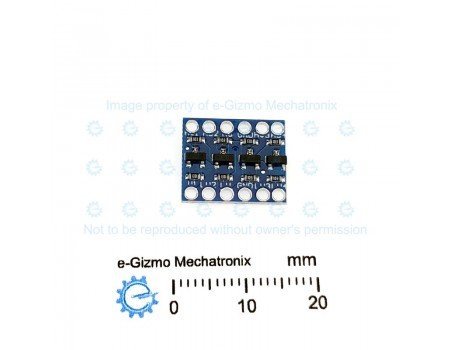

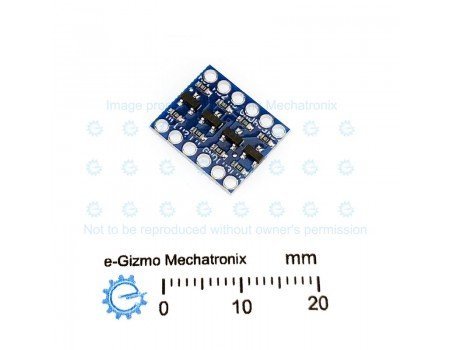

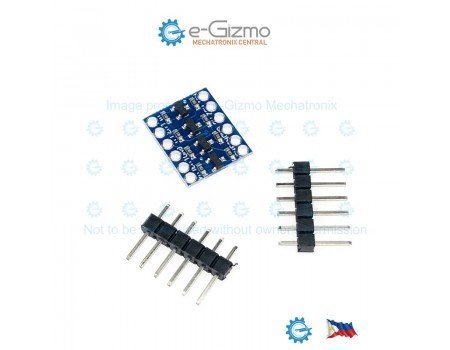

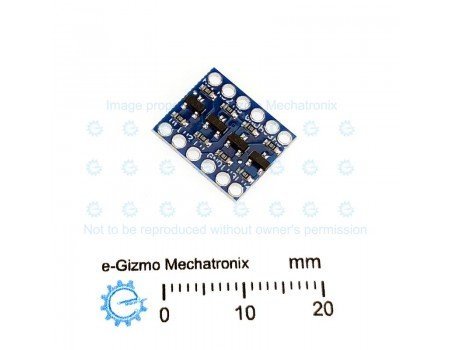

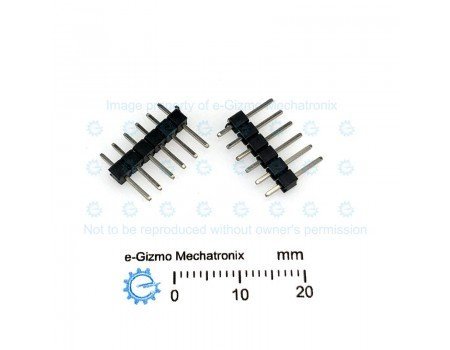

4 Channel Bi-directionalLevel Translator Module 3.3V 5V

A 4-channel bi-directional logic level translator is a device that converts voltage levels between different logic circuits, such as from 5V to 3.3V, or vice versa, while maintaining signal integrity.

It features four independent channels, each capable of handling signals in both directions, allowing for seamless communication between devices that may require either input or output signaling at different voltage levels.

This bi-directional functionality makes it ideal for applications like I2C, where data is sent and received over the same lines, ensuring safe and efficient interaction between components operating at different voltage levels.

5V to 3.3V Logic Connections

HV- 5V Side
HV - Connect to +5V
GND - Connect to GND
HV1 to HV4 - 4 channel 5V Logic Port

LV - 3.3V Side
LV - Connect to + 3.3V
GND - Connect to GND
LV1 to LV4 - 4 channel 3.3V Logic port

HV1 <-> LV1 and so on.
