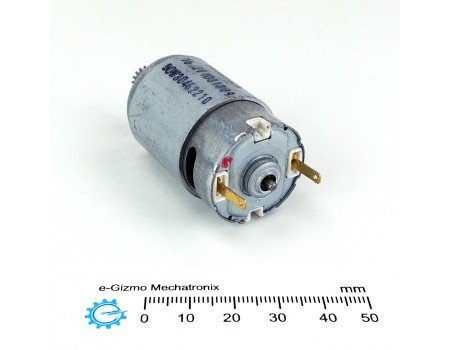

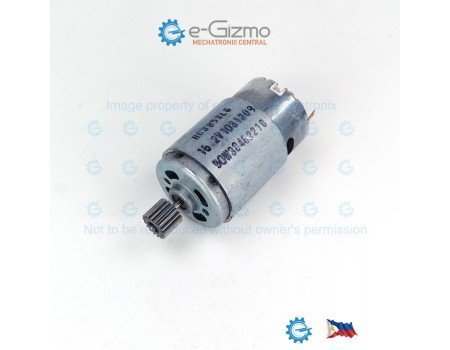

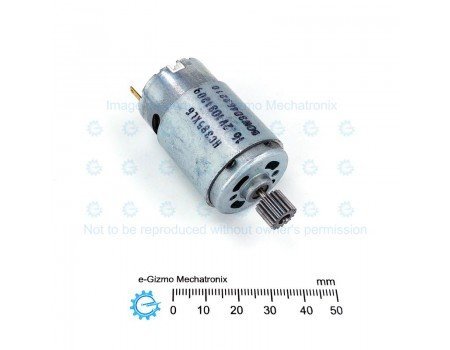

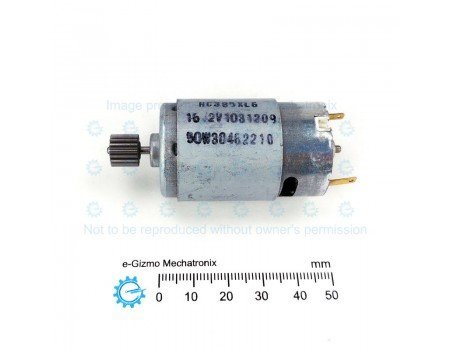

6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear

6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Pinion Gear
₱75.00
  • Stock: In Stock
  • Product Code: 230300038
  • Weight: 0.00g
  • Product ID: 50396

Good Quality RS395 Type DC Motor usable down to 5VDC. With performance enhancing flux yoke to minimize magnetic leakage, keep the magnetic field inside of the motor where it is needed most.

Manufacturer: Johnson Electric

Nominal Voltage: 16.2VDC
Operating Voltage: 5V-16.2VDC
No Load RPM: 12500rpm @ 12VDC, 6000rpm @ 6VDC
No load Current: 350mA @ 12VDC
Stall Current: 14A
Pinion Gear: 17 Teeth

Approximate Dimensions:
Body Diameter: 27.6mm, 30mm with yoke included
Body Length: 46 .7mm body + 6.5 mm protruding cups
Shaft Length: 12.5mm
Shaft Diameter: 2.3 mm

Weight: 115g
Note: Offered at a discounted price due to the presence of light scratches on body surface.
