SK-12D04 1P2T Miniature Slide Switch SPST Non Shorting

Tags: switch

Description
Reviews

Contact Format: 1 pole 2 position Slide Switch 1P2T
Model No: SK-12D04

Contact Rating: 0.3A @ 30VDC
Initial Contact Resistance: 30mR max
Operations: >10,000 cycles
Knob Travel: 2mm
Knob: 4mm side
Pins: 3
Pin Pitch: 2.0mm

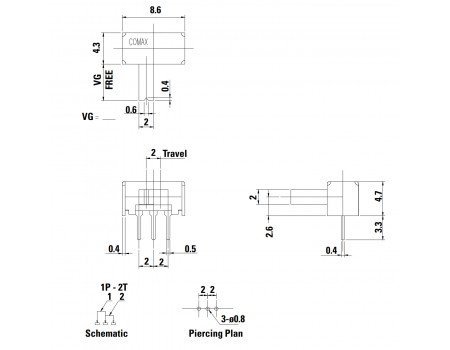

Please refer to the dimensional drawing in the photo gallery for more info.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
