Sanyo 150uF 10V 105C Hybrid Polymer Capacitor Super Low ESR CE-EX Series

Tags: capacitor , tantalum capacitor , smd tantalum , solid polymer , conductive polymer , low esr

Description
Reviews

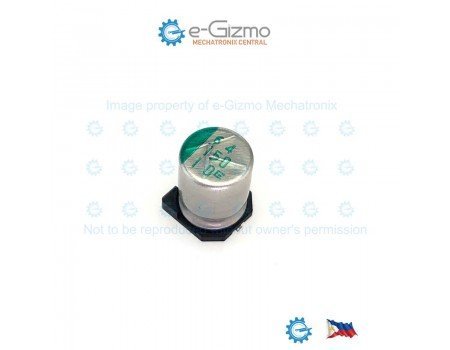

Sanyo/Suncon Hybrid Conductive Polymer Aluminum Solid Capacitors SMD

Super low ESR, impedance and high heat resistance have been obtained by using conductive polymer as electrolyte.

Manufacturer Part No: 10CE150EX
Capacitance: 150uF +/-20%
Working Voltage: 10VDC
Category Temperature Range: -55C to +105C
Dissipation Factor: 0.20 @120Hz
Ripple Current: 1550mA @ 100kHz +105C
Impedance: 0.030 ohms

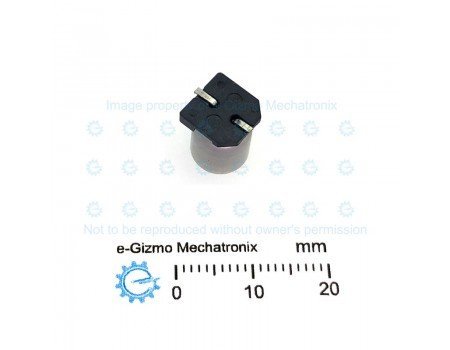

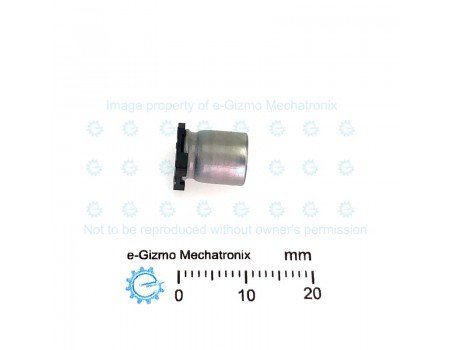

Dimensions: d8 x 10.5mm

Markings may vary from what is shown in the image.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
