Mitsubishi 74LS09 Quad2-input AND Gate Open collector DIP-14

Mitsubishi 74LS09 Quad2-input AND Gate Open collector DIP-14
Mitsubishi 74LS09 Quad2-input AND Gate Open collector DIP-14
₱36.00
  • Stock: In Stock
  • Product Code: 550074090
  • Weight: 0.00g
  • Product ID: 40671
Tags: ic , gates , nand , and , or , nor , exclusive

Mitsubishi 74LS09 Quad2-input AND Gate Open collector

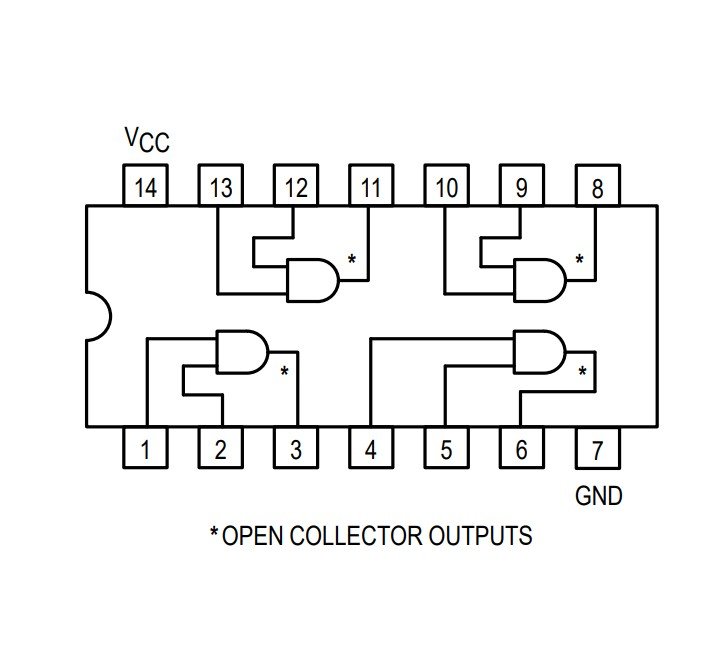

74LS09pinout

74LS09 pinout

Operation Voltage: 5.0V +/- 0.25V
High Level Input Voltage: >2.0V
Low Level Input Voltage: <0.8V
High Level Output Voltage: >2.7V
Low Level Output Voltage: <0.5V
High Level Output Current: -100uA
Low Level Output Current: 8mA
Turn ON Delay: 35ns
Turn OFF Delay: 35ns

Package/Image: DIP-14
