SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting

New

SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting

Based on 0 reviews. - Write a review

₱10.00

Stock: In Stock
Product Code: 131400022
Weight: 0.00g
Product ID: 50787

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: switch

Description
Reviews

Contact Format: 2 pole 2 position Slide Switch DPDT
Model No: SK-22D05

Contact Rating: 0.3A @ 30VDC
Initial Contact Resistance: 30mR max
Operations: >10,000 cycles
Knob Travel: 2mm
Knob: 4.5mm side position
Pins: 6
Pin Pitch: 2.0mm

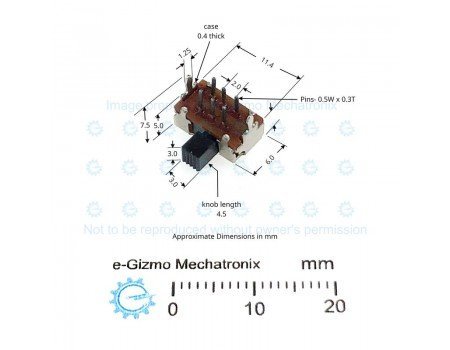

Please refer to the dimensional drawing in the photo gallery for more info.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
