Motorola MC74HC03AN (74LS03) quad 2-input NAND gate Open Drain Output DIP-14

The MC74HC03 is a quad 2-input NAND gate integrated circuit.

Manufacturer: Motorola (On Semiconductor)





Key Specifications
-Supply Voltage (V_CC): 2 V to 6 V
-Input Voltage (V_I): 0 V to V_CC
-Output Voltage (V_OH): V_CC - 0.1 V (high level)
-Output Current (I_O): ±6 mA (maximum)
-Propagation Delay (t_pd): 10 ns (typical at V_CC = 5 V)
-Power Dissipation (P_D): 1 mW (typical)
Temperature Range: -40°C to +125°C

Features:

-High-speed operation
-Low power consumption
-Wide operating voltage range
-Compatible with TTL logic levels

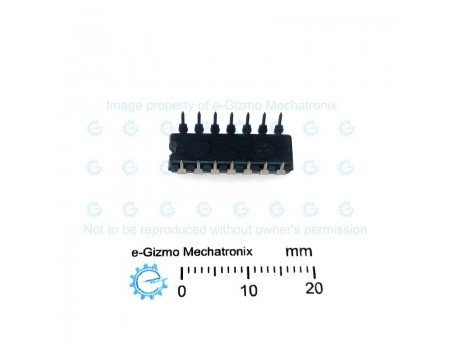

Package/Image: DIP-14
