Legrand Compact PIR Motion Sensor for Light Source 220VAC

This device enables a light source to be controlled automatically by detecting movement in the monitoring area.

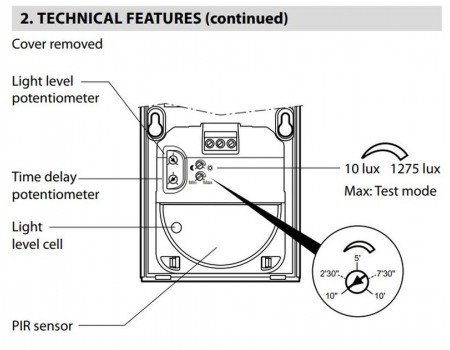

Using infrared (IR) technology, this IP42 motion sensor has a 140° detection angle and, when positioned 2.50 m above the ground, an 8 m x 6 m detection area. It is surface-mounted on walls. It is quick and easy to set, using potentiometers. The light level threshold can vary from 10 to 1275 lux and the time delay from 10 seconds to 10 minutes.

Top notch sensor offered at a huge discount price. (SRP 58 euro).

Manufacturer: Legrand (France)
Voltage: 240 Vac
Frequency: 50/60 Hz
Consumption on standby: 0.75 W

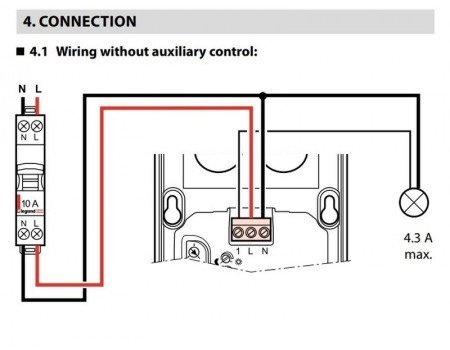

Output via normally open contact connected to the phase
Wiring: 1 x 2.5 mm2 /2 x 1.5 mm2
Number of terminals: 3
Type of terminal: screw
Weight: 114 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP42
Usage temperature: -5°C to +45°C
