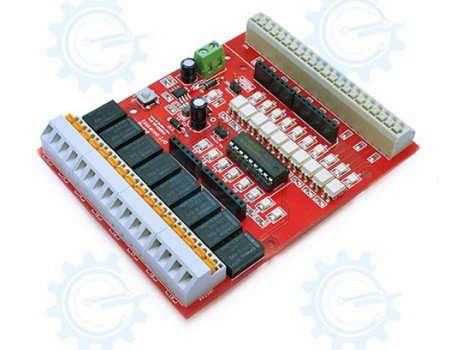

Isolated I/O Shield - Optoisolated Input dry Contact Relay Output

Isolated I/O Shield - Optoisolated Input dry Contact Relay Output
-53 % Ship in 1-3 days
Isolated I/O Shield - Optoisolated Input dry Contact Relay Output
₱750.00
₱1,590.00
  • Stock: Ship in 1-3 days
  • Product Code: 77008669
  • Weight: 0.00g
  • Product ID: 496

Opto-isolated input and relay dry contact outputs for industrial strenght applications. Compatible with e-Gizmo Arduino and Pinguino clones. Using an Atmega8 based controller, you can even program the system with ladder style programming using LDMicro Ladder Logic software- a free PLC style ladder logic programming tool.



Specifications :

Power Input

12-30VDC

IC

High Current Buffer Eight Darlington Array IC

Inputs5 Opto Isolated Inputs
Outputs5 Dry Contact Outputs
Monitoring10 I/O LED Monitor




Downloads :
Schematic Diagram
Download
PCB Design ( Top Layer )
Download
PCB Design ( Bottom Layer )Download
Parts Placement
Download
Hardware Manual
Download
Sample Arduino Sketch
Download
