PBOT Jr. Rev 1R0

PBOT Jr. Rev 1R0
PBOT Jr. Rev 1R0
PBOT Jr. Rev 1R0
PBOT Jr. Rev 1R0
PBOT Jr. Rev 1R0
₱850.00
  • Stock: In Stock
  • Product Code: 77009402
  • Weight: 0.00g
  • Product ID: 1071

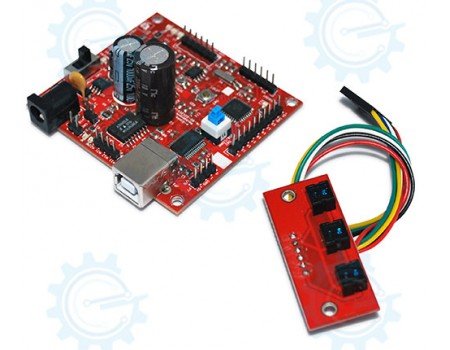

e-Gizmo P-BOT Junior Rev 1R0 version a type of mobile robot that is so affordable price. It was developed to be more lightweight and easy to use. It is adapted to the version of PBOT1r0&2r0. This board is an all in one Mobile Robot board wiith on board IC ATmega168 MCU (16kB flash memory) and A3966 dual full-bridge PWM Motor driver. Directly upload using the USB cable from Computer to the PBOTjr board.



Features :
Built-in IC ATmega168 with 16kB Flash Memory
Programmable microcontroller inside
With A3966 dual full-bridge PWM Motor driver
Directly upload using the USB cable from Computer to the PBOTjr board




Specifications :
Power Input 5 - 7VDC
On Board Peripherals

- IC ATmega168 w/ 16KB Flash Memory
- IC A3966 Dual Full-bridge PWM Motor driver

- 2-Ch DC Motor Driver - 16V 1.5A
- 3-Ch IR Line Sensor -CNY70 sensor, 10mm range
 - Slow charge battery charger circuit

PCB Dimension:
62X67mm




Downloads :
Sample Connections
Download
Sample Arduino / gizDuino Sketch
Download
PCB Layout Guide
Download
Schematic Diagrams
Download
