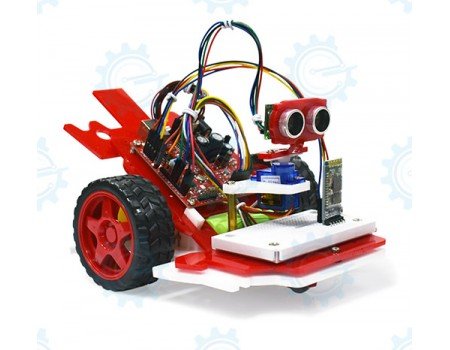

PBOT Jr. Bluetooth Controlled

PBOT Jr. Bluetooth Controlled
By Order
PBOT Jr. Bluetooth Controlled
₱3,311.50
  • Stock: By Order
  • Model: 77012866
  • Weight: 0.00g
  • UPC: 77012866

PBOT Jr. Equipped with bluetooth module for wireless remote control access. With free android app that lets you control the PBOT Jr. through your phone.

FREE Downloadable Android App is available at Google Play Store


Demo Video :



Features :
Open circuit design for easy module interfacing
Arduino / gizDuino Compatible Shield Port
In-Circuit programming & Charging
Dual Full-Bridge PWM Motor Driver
Available in many variants and with Editable Sample Codes/Sketch (Bluetooth Controlled w/ free Android App & PS2 Controlled)



Specifications :
Power Input 7-9VDC
Charger Input
9-10VDC
On-Board peripherals
2CH-PWM Motor Driver 6V 1.5A
3-Ch Line Tracker Sensor 10mm range
PCB Dimension (PBOT Jr. Board)
62x67mm
Physical Dimensions
Weight:
Standard = 0.558kg
BT Controlled = 0.566kg
PS2 Controlled w/ e-GRA = 0.613kg
Chassis Only = 0.362kg

Height / Vertical Clearance:
Standard = 10.5cm
BT Controlled = 10.5cm
PS2 Controlled w/ e-GRA = 21.5cm
Chassis Only = 10.5cm



Downloads :
Technical Manual
Download
Assembly Manual (Standard)
Download
Assembly Manual (Chassis)
Download
Sample Arduino/gizDuino Sketches
Download
