Small Size PIR motion sensor module White Fresnel Lens PDMIZ

Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
Small Size PIR motion sensor module White Fresnel Lens PDMIZ
₱79.00
  • Stock: In Stock
  • Product Code: 211100042
  • Weight: 0.00g
  • Product ID: 1573

This product is a commercial quality single channel PIR motion sensor with White Fresnel lens and has wide horizontal coverage.

Operation Voltage: 3.3V to 5VDC
Detection Range*: >5 meters
Detection Coverage: >150 degrees along the horizontal plane
Recommended Mounting: Horizontal (PCB Vertical)

Sensitivity Adjustment: None

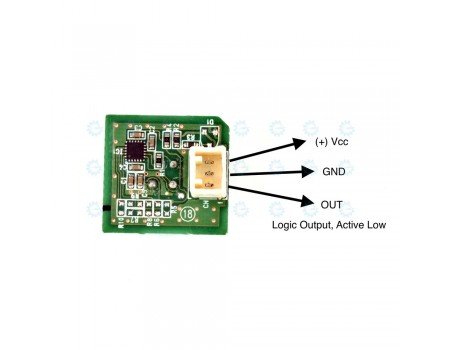

I/O Connector: 3 pin Wafer Type 2mm pitch
Output: Vcc Level Logic, compatible with both Arduino (5V) and Raspberry Pi (3.3V)

Important: PIR sensors require up to a minute of power ON setup time before they start to work.

*Detection distance depends on several environmental factors. Generally, distance is reduced when the ambient temperature is close to 37C, and/or under strong light.
