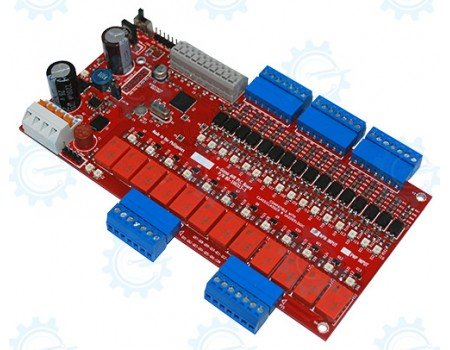

PLC64 28 I/O Programmable Logic Controller

PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
Pre-Order
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
PLC64 28 I/O Programmable Logic Controller
Based on 0 reviews. - Write a review
₱2,595.00
  • Stock: Pre-Order
  • Product Code: 77009301
  • Weight: 0.00g
  • Product ID: 18
e-Gizmo
Add to Cart
Buy Now
Add to Wish List Compare this Product

Our new e-Gizmo PLC64(28 I/O Programmable logic controller) is a low cost automation controller solution. Its low cost also makes it an attractive choice as a hardware platform for PLC hands-on training. Supports graphical ladder style programming with the use of Ladder Logic and Classicladder free software.


A number of these boards are on deployment in actual industrial machines, and had been in service for years, operated 24/7.



Specifications :
Power Input :
12.0 V - 24.0 V DC Operation
IC :ATMEGA64A MCU engine
Clock frequency :14.7456 MHz
PCB Dimension :165mm x 82mm


Features :
- 12 dry contact isolated outputs. Relay type.
- 16 Opto-isolated inputs.
- 8 Analog input ports (supportd only by LadderLogic)
- LED monitored I/O
- 64K Flash memory
- SFC/GRAFCET style programming with ClassicLadder.


Downloads :
Hardware Manual
Download
SoftwaresDownload
Test Programs
Link
