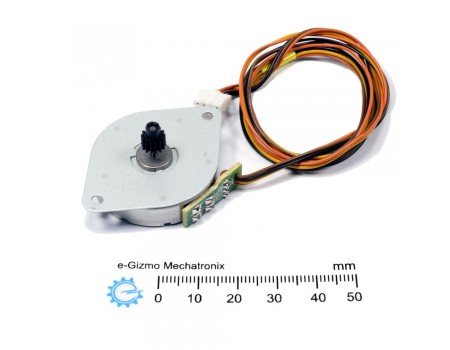

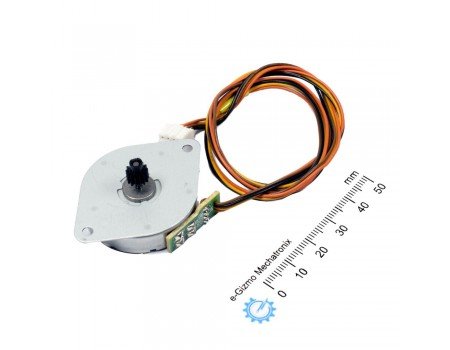

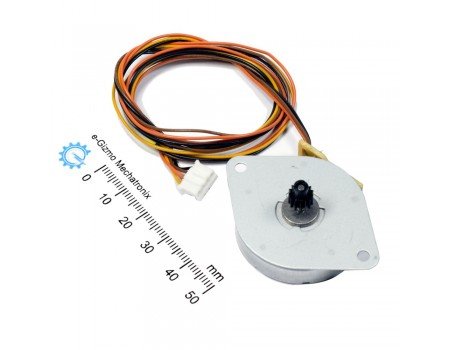

ST35B-96 Stepper Motor Bipolar 400mA 96 steps

ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
New
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
ST35B-96 Stepper Motor Bipolar 400mA 96 steps
₱115.00
  • Stock: In Stock
  • Product Code: 230300025
  • Weight: 0.00g
  • Product ID: 49446

2-phase 96 steps per revolution Bipolar Stepper Motor.

Step Angle: 3.75 degrees per step
Coil Resistance per phase: 9.4 ohms
Drive Method: 4-wire Bipolar Constant Current
Drive Current: 400mA
Torque: 115N*m at 2000 PPS speed, 65N*m at 8000 PPS
Recommended Driver Power Supply Voltage*: 24VDC
Wire Lenght: 530mm with 2mm pitch wafer termination

Note: This voltage specification is for the driver unit, not applicable to the motor itself. Make sure the drive current does not exceed 400mA. A high driver voltage is desirable to get the best torque at a high rotation speed.
