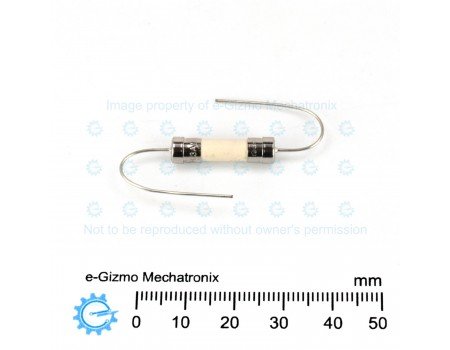

Littelfuse 4A Fast Acting Ceramic Fuse PCB Solderable 0216004.MXEP

Genuine Littlefuse

Current Rating:4A Fast Acting
Voltage: 250VAC
Resistance: 0.0247 ohms
Nominal Melting Point: 14.995 A^2sec
Safety Approvals: UL, VDE, CCC,IEC,ICC
Body Dimensions: D5.0 x L20 mm
Lead: D0.64 x 45 mm

Opening Time:
@150% - 60m min.
@210% - 30m max.
@275% - 0.01 - 2 sec
@400% - 0.003-0.3 sec
@1000% - 0.02 sec max.

Weight: 1.5g

Package/Image: cfuse20ax
