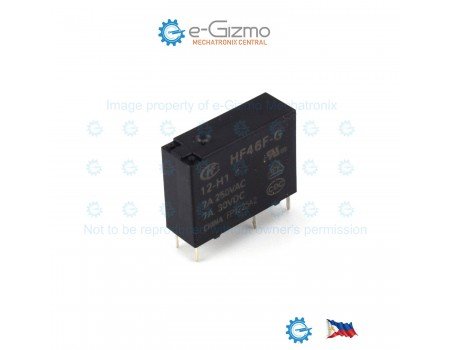

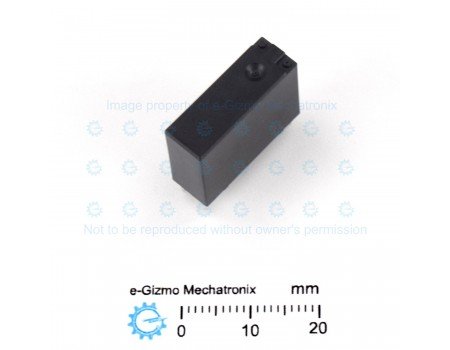

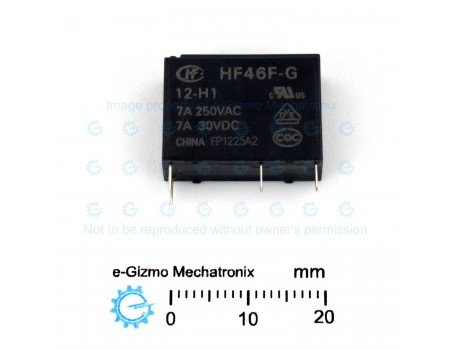

HF46F-G/12-H1 SPST 12V 7A Relay

HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
New
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
HF46F-G/12-H1 SPST 12V 7A Relay
₱25.00
  • Stock: In Stock
  • Product Code: 130800038
  • Weight: 0.00g
  • Product ID: 50126
Tags: relay

Genuine HengFu Relay, 12V 5A with UL, CUL, VDE & CQC safety qualifications.
Rated at 5 million operations
Gold Plated relay contacts for long life.

Contact Material: AgSnO2
Contact Rating: 7A
Contact Resistance: 100mR
Contact Voltage: 250VAC/30VDC
Contact Switching Power: 2770VA/300W
Mechanical Endurance: 5 million operations

Coil Voltage: 12VDC Nominal, 15.6V max.
Coil Pickup Voltage: 9V max.
Coil Release Voltage: 0.6V min.
Coil Resistance: 720R +/-10%
Safety Approval: UL, CUL, VDE, CQC

Weight: 3g
