BIO SENSING: Heart Rate Monitor Kit

Tags: rate , monitor , heart , pulse sense , pulse

Description
Reviews

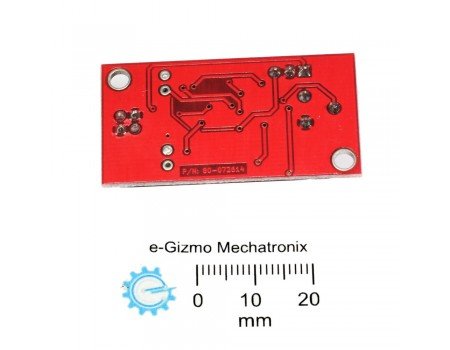

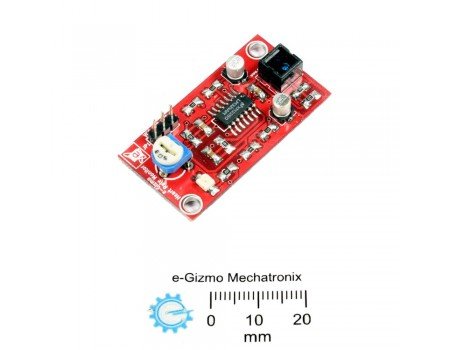

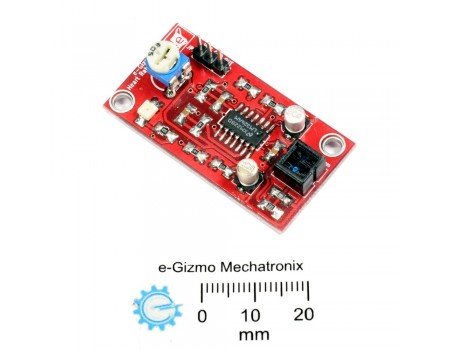

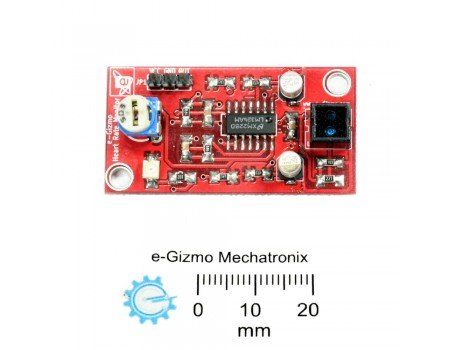

e-Gizmo Heart Rate monitor module is a non-invasive heart rate detection device. Just put a finger over the sensor, and it will output pulses at a rate your heart beats.

Specifications :

Power Input	5VDC
Output Type	Digital Pulses

Downloads :

Hardware Manual	Download
Arduino / gizDuino Sketch	Download
PCB Design	Download

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
