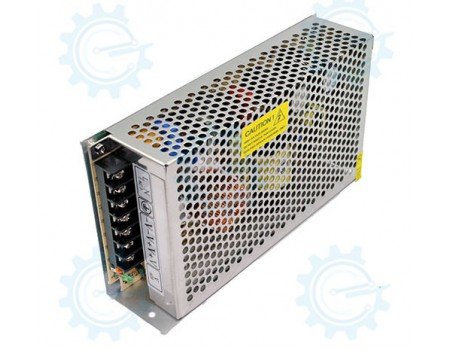

Hengfu Power Supply 24V 10A

Hengfu Power Supply 24V 10A
For Restocking
Hengfu Power Supply 24V 10A
  • Stock: For Restocking
  • Product Code: 77012814
  • Weight: 0.00g
  • Product ID: 671

l High reliability, low cost

l Built-in EMI filter

l 100% full load burn-in test

l Protections: overload/ short circuit

l F620 200 x 110 x 50(mm)

AC input voltage range: 170~264VAC (210~370VDC)

Input frequency: 47~63Hz

Inrush current: cold start, 40A/230V

Input leakage current: ?0.7mA/ 230VAC

Line regulation (full load): ??0.5%

Output voltage adjust range: ?10%

Output overload protection: 110~130%, shut off, re-power on to recover

Withstand voltage:

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

Rise time: 50ms@full load (typical)

Hold up time: 20ms@full load (typical)

Operating temperature: -20?~+50?

Safety standards: design meet GB4943, UL60950, EN60950

EMC standards: design meet GB9254, EN55022 classA

Cooling method: convection

Packing: 0.83kg/pcs, 20pcs/CTN
